UnionsSteel & Aluminum

TABLE 1

Splice Plate Reducer

Required Cable Tray	Splice Plate and Cable Tray material	N° Catalog
EL75 EL10 EP10 EP12 BS75 BS10 BP75 BP10 EL10 EL15 BS75 BS10 BP75 BP10	Steel Steel Steel Steel Steel Steel Steel Steel Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum	US-EL75 US-EL10 US-EP10 US-EP12 US-S75 US-S10 US-P75 US-P10 US-EL10 US-EL1 5 US-BS75 US-BS10 US-BS10 US-BS10

Cabletray ® Splice Plates provide an excellent mechanical and electrical connection between all elements. They come with all the fastening system parts: Bolts, nuts, washers ( HDGAF or plated). The splice plates for channels are in the Channel section of the catalogue. There are different kinds of slice plates. Depending of the union more that one type can be needed. Please consult our technical department.

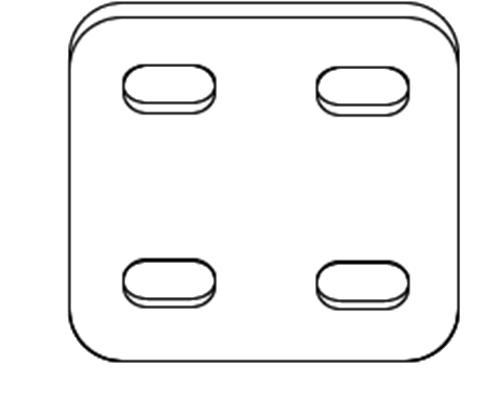

SINGLE UNION

TABLE 2

Required Cable Tray	Splice Plate and Cable Tray material	N° Catalog
EP10 EP12 EX10 EX12 BS ó BP – 75 BS ó BP – 10 EP10 EP12 BS ó BP – 75 BS ó BP – 10	Steel Steel Steel Steel Steel Steel Aluminum Aluminum Aluminum Aluminum	UD-EP1 0 UD-EP12 US-EX10 EX12 UD - BS ó BP 75 UD - BS ó BP10 UP-EP1 0-A UP-EP1 2-Z UP-BS o BP75 UP-BS o BP10

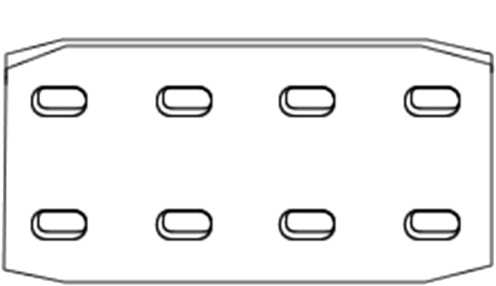

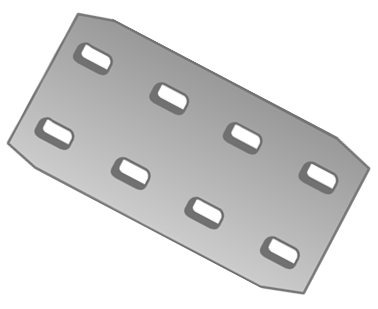

DOUBLE UNION

Heavy Duty Aluminum Slice Plate

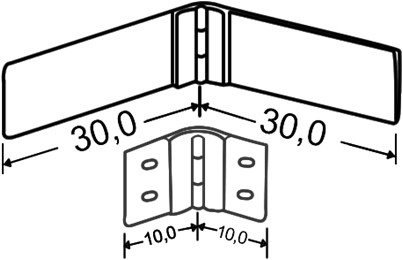

Adjust Vertical Union
At the end of the description numbers of Tables 1 & 2 add the corresponding prefix to the required type. Always they come in pairs

Expansion Union- 2,5 cm Expansion
At the end of the description numbers of Tables 1 & 2 add the corresponding prefix to the required type. Always they come in pairs

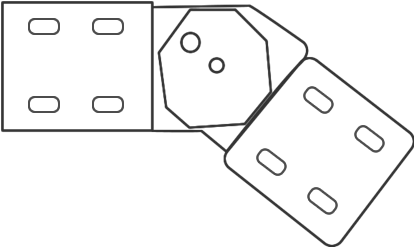

Adjust Horizontal Union
At the end of the description numbers of Tables 1 & 2 add the corresponding prefix to the required type. Always they come in pairs
