Covers - Straight Sections and BendsSteel & Aluminum

Covers solid or ventilated

XXXX: This item is intended to cover wherever you go
Material: L - LPGC; G - GCDF; A – Aluminum
Cover:TS - Cover Solid, TV - Cover Ventilated

CATALOGUE PART NUMBER
Prefijo TS L - XXXX - YY - XX

-See Unions-

COD: TS – GTR – YY - XX TS: TAPA SÓLIDA; TV; T VENT G: GALV; A: ALUM. TR: TRAMO RECTO XX: ANCHO YY: LARGO	COD: TS-GCH-XX-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. CH: CURVA HORIZONTAL XX: ANCHO XX: RADIO XX: ANGULO

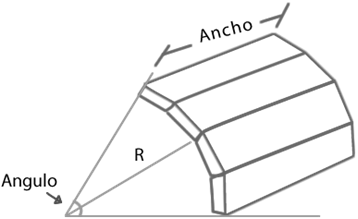

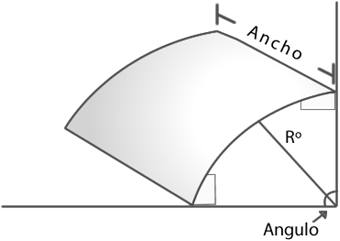

COD: TS-GCVI-XX-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. CVI: CURVA VERTICAL INT. XX: ANCHO XX: RADIO XX: ANGULO	COD: TS-GCVI-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. CVE: CURVA VERTICAL EXT. XX: ANCHO XX: RADIO XX: ANGULO

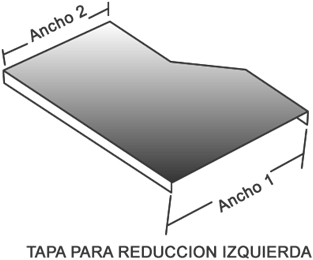

COD. TS-GRC-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. RC: REDUCCIÓN CENTRAL XX: ANCHO 2 XX: ANCHO 1	COD: TS-GCVI-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. RI: REDUCCIÓN IZQUIERDA XX: ANCHO 2 XX: ANCHO 1

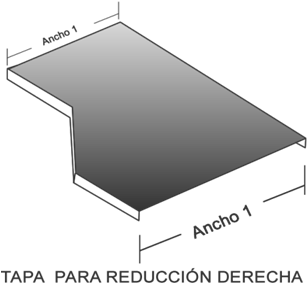

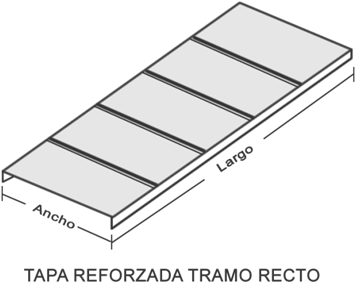

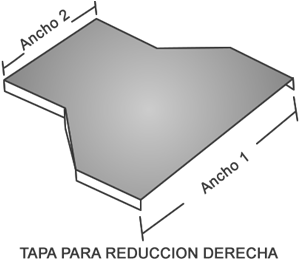

COD: TS-GTRR-YY-XX TS: TAPA SÓLIDA; TV: T VENT LG: GALV; A: ALUM. TRR: TRAMO REC. REFORZADO XX: ANCHO YY: LARGO	COD: TS-GCVI-XX-XX TS: TAPA SÓLIDA; TV: T VENT G: GALV; A: ALUM. RD: REDUCCIÓN DERECHA XX: ANCHO 2 XX: ANCHO 1
